Virginia Beach, VA 58 Linear Feet Installed
The Problem
Water was consistently pooling between two neighboring driveways, creating saturated turf, soft ground conditions, and runoff concentration toward the street. During heavy rain, both the lawn areas and the hardscape edges were holding water for extended periods.
The primary concern was not just wet grass it was unmanaged runoff flow between impervious surfaces (two driveways) funneling water into a low point with no structured discharge path.
Left uncorrected, this condition risks:
- Driveway edge erosion
- Turf failure
- Soil displacement
- Ongoing saturation near property transitions
Site Conditions & Constraints
This project required careful routing because:

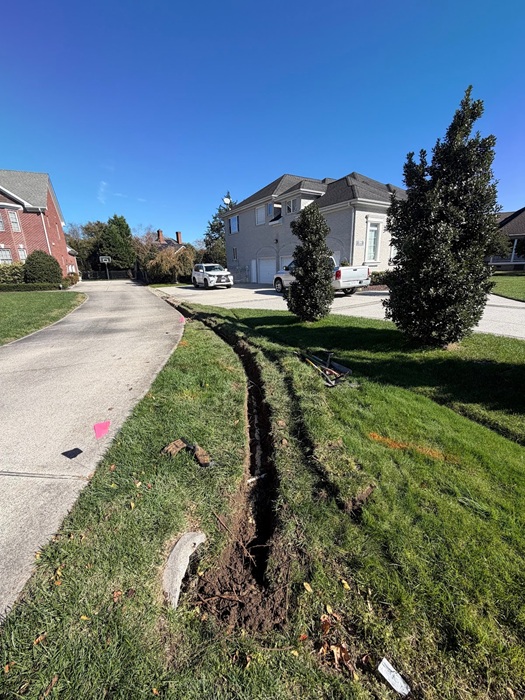

- Underground utilities limited trench alignment
- The drain line required horizontal turns
- Proper pitch still needed to be maintained despite directional changes
This was not a straight-line trench installation. It required controlled slope management while navigating real-world site obstacles.
The Solution

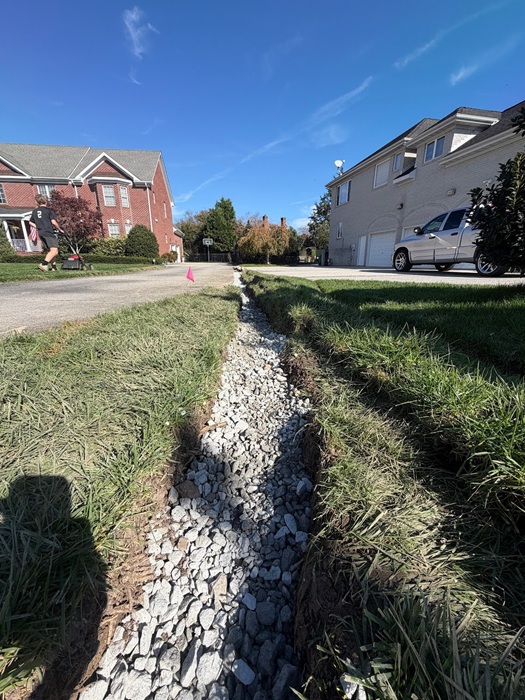

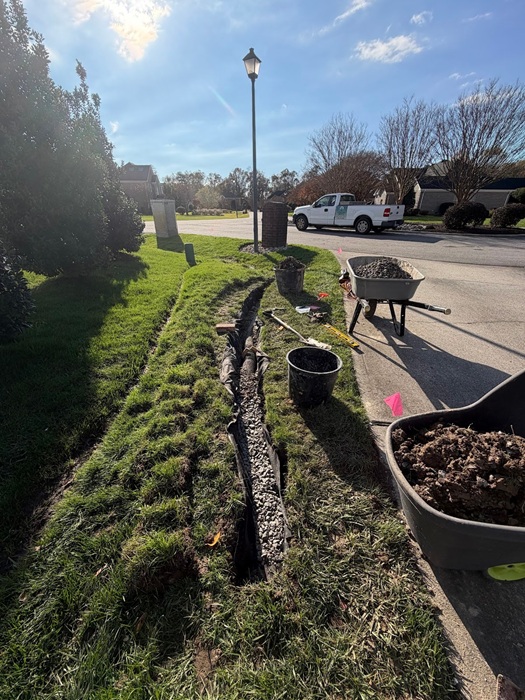

We installed a 58-linear-foot French drain system designed to intercept and redirect concentrated surface and subsurface water flow.
System components included:

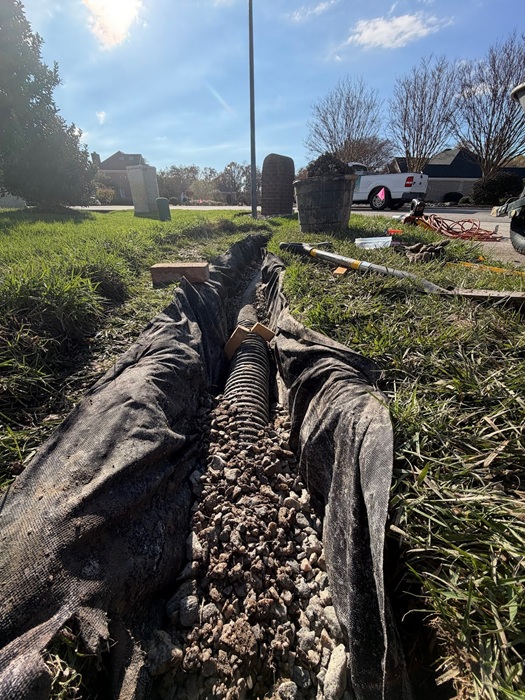

- 4” perforated corrugated drainage pipe

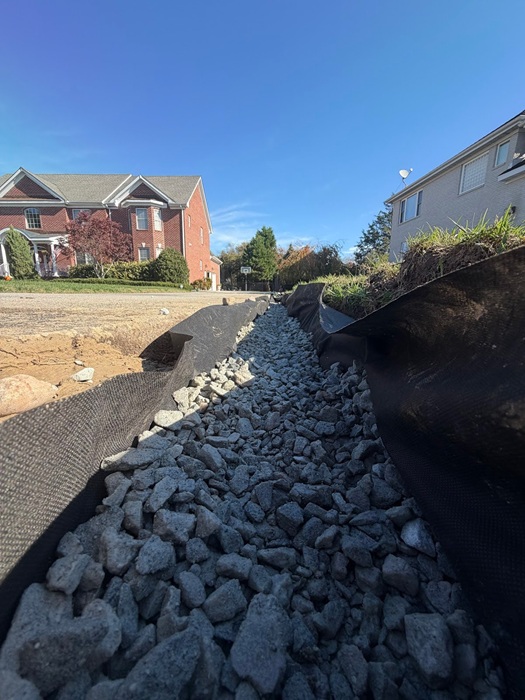

- Washed drainage stone for water infiltration
- Fabric separation to reduce sediment intrusion
- Controlled slope maintained through directional adjustments
- Daylight discharge into the roadside ditch
The discharge outlet was not left exposed.
We constructed a semicircular landscape bed using chalet stone and metal edging to:
- Conceal the outlet
- Protect the termination point
- water discharge
- Maintain curb appeal
Surface Correction & Restoration
An existing rock bed between the driveways was removed and regraded to restore positive surface flow.
We installed:
- Rebalanced grading
- Compost and topsoil blend
- Premium fescue sod
This ensured that the surface worked with the drainage system not against it.
The Result
- Water no longer pools between the driveways
- Saturation time dramatically reduced
- Lawn stability restored
- Controlled discharge to the street ditch
- Improved visual finish at the termination point
This project addressed both runoff concentration and subsurface drainage, not just wet grass.
Long-Term Benefit
By redirecting concentrated water flow and correcting surface grade simultaneously, the property now drains efficiently during heavy rainfall without recurring low-point pooling.
The system is functional, concealed, and integrated into the landscape not visibly engineered, but properly engineered.
